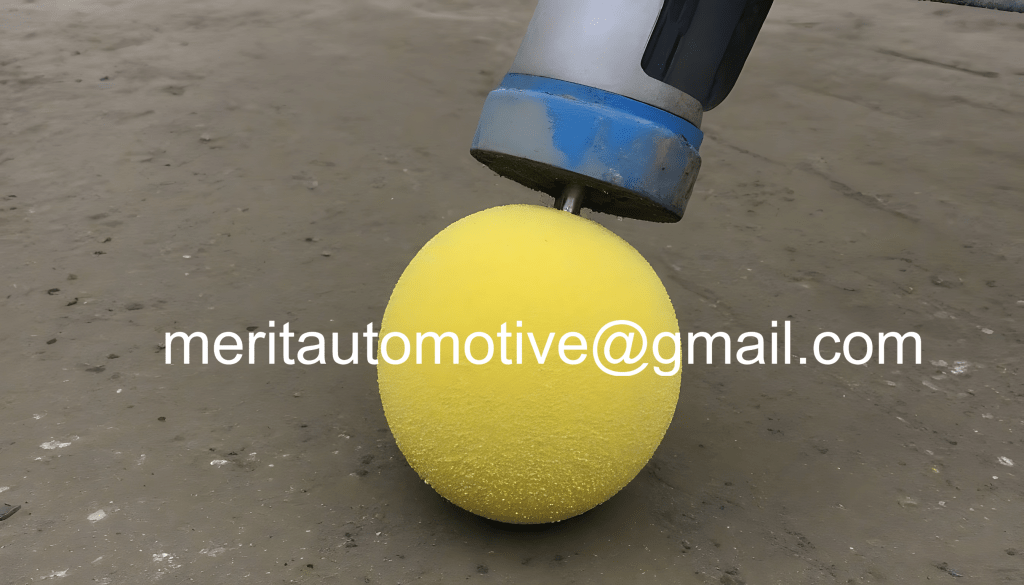

What Do You Do When A Foam Wiper Ball Stuck and Jammed Inside The OD of Drill Pipe in Oilfields?

A stuck foam wiper ball in the OD (outer diameter) of a drill pipe can be a tricky situation and the solution depends on several factors, including:

Severity of the Situation:

• Location: Where is the ball stuck? Is it near the surface or deep down the hole? Deeper locations present greater challenges and risks.
• Cause: What caused the ball to get stuck? Did it expand excessively due to fluids or temperature? Did it encounter a restriction in the pipe? Identifying the cause can help choose the best removal method.
• Damage: Is the pipe itself damaged? Is there any deformation or tearing around the stuck ball? Significant damage might require more drastic measures.

Available Resources:

• Equipment: Do you have the necessary tools and equipment for retrieval? This might include wireline units, fishing tools, and specialized equipment for manipulating the ball.
• Personnel: Are there trained and experienced personnel available to safely handle the retrieval operation?
• Time and Cost: How much time and cost are you willing to invest in resolving the issue? Certain methods may be faster but more expensive.

Here are some potential methods for removing a stuck foam wiper ball from the OD of a drill pipe, depending on the circumstances:

Gentle Methods:

• Fluid Circulation: Try circulating fluid through the pipe at different pressures and flow rates. This might dislodge the ball if it’s not firmly stuck.
• Compression Tools: Use specialized tools, like inflatable packers or compression rings, to gently squeeze the ball and potentially create enough space for it to pass through a restriction.
• Chemical Dissolvents: If the ball is made of a material susceptible to specific solvents, consider using them cautiously to try and shrink or partially dissolve it. This should only be done with proper safety precautions and expert guidance.

More Aggressive Methods:

• Drilling or Cutting: If all else fails, consider drilling or cutting a small hole through the pipe and extracting the ball through that opening. This method is risky and should be a last resort, as it compromises the integrity of the pipe.
• Pipe Replacement: In extreme cases, if the ball cannot be removed and the pipe is severely damaged, replacing the entire section of pipe might be necessary.

Important Considerations:

• Safety: Always prioritize the safety of personnel involved. This means properly assessing the risks, using appropriate tools and procedures, and involving experienced professionals if needed.
• Environmental Impact: Be mindful of any potential environmental consequences of your chosen method, especially regarding fluid spills or damage to the drilling site.
• Cost-Effectiveness: Weigh the cost of various options against the value of the affected pipe and potential losses due to downtime.

Ultimately, the best course of action depends on the specific details of your situation. Consulting with experienced drilling professionals and equipment suppliers is crucial for getting the most accurate advice and implementing the most effective solution for your case.
