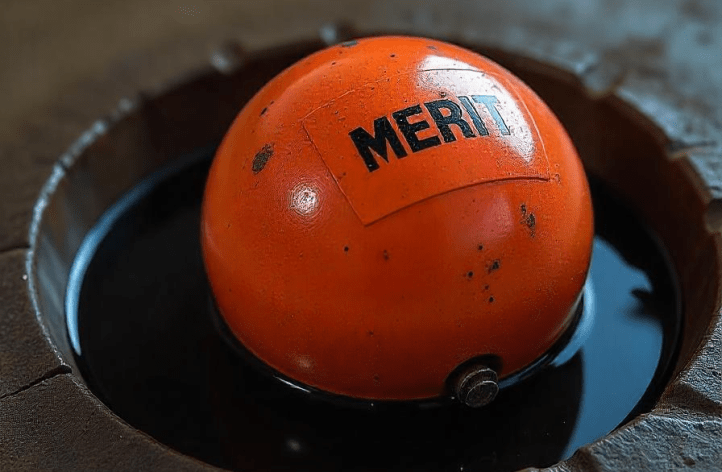

A foam wiper ball is one of the simplest and most cost-effective tools for efficient fluid displacement. In every cementing job, drilling fluid, cement residue or solid debris left on the inner pipe wall can restrict circulation, compromise zonal isolation and add non-productive time (NPT).
The challenge is the same wherever wells are drilled: in deepwater fields developed by supermajors such as ExxonMobil, Shell, BP, Chevron or TotalEnergies, in national oil company programs run by Saudi Aramco, ADNOC, Petrobras or Pertamina and on independent operators’ wells. Merit manufactures natural rubber foam wiper balls in standard sizes from 3″ to 20″, and our engineers help you specify the right ball for your drill pipe, casing, tubing, tools and fluids.
A wiper ball is only as effective as its fit. An undersized ball leaves residue on the pipe wall, while an oversized or overly rigid one can struggle at restrictions. This guide outlines the selection process.
What Is a Foam Wiper Ball and How Does It Work?
A foam wiper ball is pumped through drill pipe, casing or tubing. Its compressible body stays in contact with the inner wall and pushes residual fluids and solids ahead of it. The main benefits are:
- Displacement efficiency: Consistent wall contact improves cement placement, even across variable bore profiles.
- Equipment protection: Removing abrasive particles reduces internal erosion and flow restriction in drill pipe and BHA components.
- Operational speed: Balls can be launched through cementing heads, diverters or liner hanger systems, keeping stage transitions short.
Built for Well Conditions Around the World
Cementing programs run in very different environments, and every region has its own demands. Merit wiper balls come with documented wiping ranges, minimum restrictions and temperature ratings for every size, so they can be matched to the requirements of each of the following regions.
North America and Canada. Long horizontal wells in unconventional plays, developed by operators such as ExxonMobil, Chevron, ConocoPhillips, Occidental, EOG Resources, Devon Energy and Diamondback Energy, call for consistent displacement along the full lateral. In Canada, companies such as Suncor, Cenovus and Canadian Natural Resources work through severe winters, where the low-temperature behavior of natural rubber becomes an important consideration.
Middle East. Large-scale programs run by Saudi Aramco, ADNOC, QatarEnergy, Kuwait Petroleum Corporation and Petroleum Development Oman combine high temperatures with heavy workloads. Checking the temperature rating and fluid compatibility is an essential step.
Europe and the North Sea. Operators such as Shell, BP, TotalEnergies, Eni, Equinor, Repsol, OMV and Aker BP run offshore wells under strict planning standards, which makes the data sheet and size-specific specifications especially valuable.
Asia-Pacific. Pertamina, Petronas, PTT Exploration and Production, ONGC, CNOOC, Sinopec, PetroChina, Woodside, Santos and INPEX manage onshore, offshore and geothermal fields with a wide variety of well profiles.
Africa. Sonatrach, NNPC, Sonangol and EGPC run cementing programs in desert and offshore fields, where dependable supply and the availability of standard sizes are key factors.
Latin America. Petrobras, Pemex, Ecopetrol, YPF and Petroperú work on pre-salt, deepwater and onshore wells with diverse bore profiles.
Russia, Central Asia and the Caucasus. Rosneft, Lukoil, Gazprom Neft, KazMunayGas and SOCAR operate fields ranging from arctic cold to desert heat, which makes the -40°F to 300°F (-40°C to 149°C) rating directly relevant.
Service companies. Across all of these regions, cementing is typically carried out with service partners such as SLB, Halliburton, Baker Hughes, Weatherford and NOV. For service companies and drilling contractors, correct sizing and clear part numbers help speed up preparation at the wellsite.
Whatever the operator or region, the core needs are the same: reliable displacement, predictable wall contact and minimal NPT.
How to Choose the Right Foam Wiper Ball
Step 1: Match the Ball to the Pipe ID
Sizing is the most critical decision. Each ball size has a wiping range, the span of inside diameters it can wipe effectively. The ball is manufactured oversized relative to the pipe ID, so it compresses and seals against the wall. A nominal 5″ ball, for example, typically covers 1.75–4.00 in (44.5–101.6 mm), and a nominal 7″ ball covers 2.38–5.50 in (60.5–139.7 mm). Verify the range against every ID the ball will pass through, not only the main bore.
Step 2: Verify the Minimum Restriction
Strings often include float collars, mechanical set packers or stage tools. Each ball size has a minimum restriction, the smallest opening it can pass through. With a parting stretch of up to 500%, foam wiper balls can travel through tight profiles. Still, confirm that every restriction in your string falls within the ball’s rating.
Step 3: Why Choose Natural Rubber?
Merit manufactures its oilfield wiper balls from natural rubber. The material gives the ball the flexibility and dynamic compressibility to maintain wall contact, pass through restrictions and recover its shape afterward. Natural rubber also performs well at low temperatures, making it a dependable choice for cold-climate drilling.
- Flexibility: Adapts to changing IDs along the string.
- Dynamic compressibility: Passes through float collars, mechanical set packers and stage tools.
- High parting stretch: Up to 500% elongation.
- Low-temperature performance: Suited to cold-climate service down to -40°F (-40°C).
Step 4: Confirm Fluid and Temperature Compatibility
Check compatibility with your mud system (water-based, oil-based or synthetic-based) and any spacer fluids. Merit wiper balls are rated from -40°F to 300°F (-40°C to 149°C) and are designed to withstand high downhole pressure without deformation. Always validate suitability against your specific fluid program, operator specifications and well conditions.
Foam Wiper Ball Applications
- Primary cementing
- Liner hanger systems
- Horizontal and deviated well sections
- Geothermal and water well operations
- Mud displacement ahead of spacers
- Pipeline pre-commissioning
Foam Wiper Ball Sizing Checklist
- Identify the largest and smallest IDs in the string.
- Select a ball whose wiping range covers all of them.
- Confirm the minimum restriction of float collars, packers and stage tools.
- Confirm that natural rubber suits your temperature and fluid conditions.
- Request the technical data sheet before ordering.
Common Wiper Ball Specification Errors
- Sizing to the main bore only and overlooking smaller IDs further down the string.
- Overlooking fluid chemistry, particularly with oil-based or synthetic muds.
- Skipping the temperature check in extreme hot or cold climates.
- Ordering without the data sheet, which lists exact wiping ranges and restrictions for each size.
Merit Foam Wiper Ball Sizes and Part Numbers (3″ to 20″)
| Nominal Size in (mm) | Actual Size in (mm) | Merit Part No. | Typical Wiping Range in (mm) | Min. Restriction in (mm) |
|---|---|---|---|---|
| 3 (76.2) | 3.15 (80) | WP10003 | 1.10 – 2.50 (27.9 – 63.5) | 0.500 (12.7) |
| 4 (101.6) | 3.94 (100) | WP10004 | 1.38 – 3.12 (35.1 – 79.2) | 0.625 (15.9) |
| 5 (127.0) | 4.92 (125) | WP10005 | 1.75 – 4.00 (44.5 – 101.6) | 0.750 (19.1) |
| 6 (152.4) | 5.91 (150) | WP10006 | 2.00 – 4.75 (50.8 – 120.7) | 0.875 (22.2) |
| 7 (177.8) | 6.89 (175) | WP10007 | 2.38 – 5.50 (60.5 – 139.7) | 1.000 (25.4) |
| 8 (203.2) | 7.87 (200) | WP10008 | 3.00 – 7.00 (76.2 – 177.8) | 1.375 (34.9) |
| 9 (228.6) | 8.86 (225) | WP10009 | 3.20 – 8.00 (81.3 – 203.2) | 1.440 (36.6) |
| 10 (254.0) | 9.84 (250) | WP10010 | 3.51 – 8.40 (89.2 – 213.4) | 1.500 (38.1) |
| 11 (279.4) | 10.83 (275) | WP10011 | 3.75 – 8.75 (95.3 – 222.3) | 1.750 (44.5) |
| 12 (304.8) | 11.81 (300) | WP10012 | 4.32 – 9.00 (109.7 – 228.6) | 2.000 (50.8) |
| 13 (330.2) | 12.80 (325) | WP10013 | 4.55 – 9.50 (115.6 – 241.3) | 2.125 (54.0) |
| 14 (355.6) | 13.78 (350) | WP10014 | 4.78 – 10.00 (121.4 – 254.0) | 2.250 (57.2) |
| 15 (381.0) | 14.76 (375) | WP10015 | 5.00 – 10.50 (127.0 – 266.7) | 2.375 (60.3) |
| 16 (406.4) | 15.75 (400) | WP10016 | 5.25 – 11.00 (133.4 – 279.4) | 2.500 (63.5) |
| 17 (431.8) | 16.73 (425) | WP10017 | 5.50 – 11.50 (139.7 – 292.1) | 2.625 (66.7) |
| 18 (457.2) | 17.72 (450) | WP10018 | 5.75 – 12.00 (146.1 – 304.8) | 2.750 (69.9) |
| 19 (482.6) | 18.70 (475) | WP10019 | 6.00 – 12.50 (152.4 – 317.5) | 2.875 (73.0) |
| 20 (508.0) | 19.69 (500) | WP10020 | 6.25 – 13.00 (158.8 – 330.2) | 3.000 (76.2) |
Foam Wiper Ball FAQ
What is a foam wiper ball used for?
A foam wiper ball is pumped through drill pipe, casing or tubing to push residual fluids, cement residue and solids ahead of it, improving displacement efficiency and protecting downhole equipment.
What sizes of foam wiper balls does Merit offer?
Merit supplies natural rubber foam wiper balls in standard sizes from 3″ to 20″, with part numbers WP10003 to WP10020.
How do I choose the right wiper ball size?
Identify the largest and smallest IDs in your string, then select a ball whose wiping range covers all of them. Also confirm that the ball’s minimum restriction suits every float collar, packer and stage tool.
What temperature range do Merit wiper balls cover?
Merit wiper balls are rated from -40°F to 300°F (-40°C to 149°C).
Are natural rubber wiper balls suitable for cold climates?
Yes. Natural rubber performs well at low temperatures, and Merit wiper balls are suited to cold-climate service down to -40°F (-40°C).
Can wiper balls pass through float collars and stage tools?
Thanks to a high parting stretch of up to 500%, foam wiper balls can travel through tight profiles. Always confirm that each restriction in your string is within the ball’s rating.
Request a Quote or Technical Data Sheet
Merit supplies natural rubber foam wiper balls for oilfield applications in sizes from 3″ to 20″. Our product specialists will help you match the right ball to your string, tools and fluids, wherever your well is located.
Download the technical data sheet, or call or WhatsApp us at +90 552 105 10 34 for engineering support and quotations.
