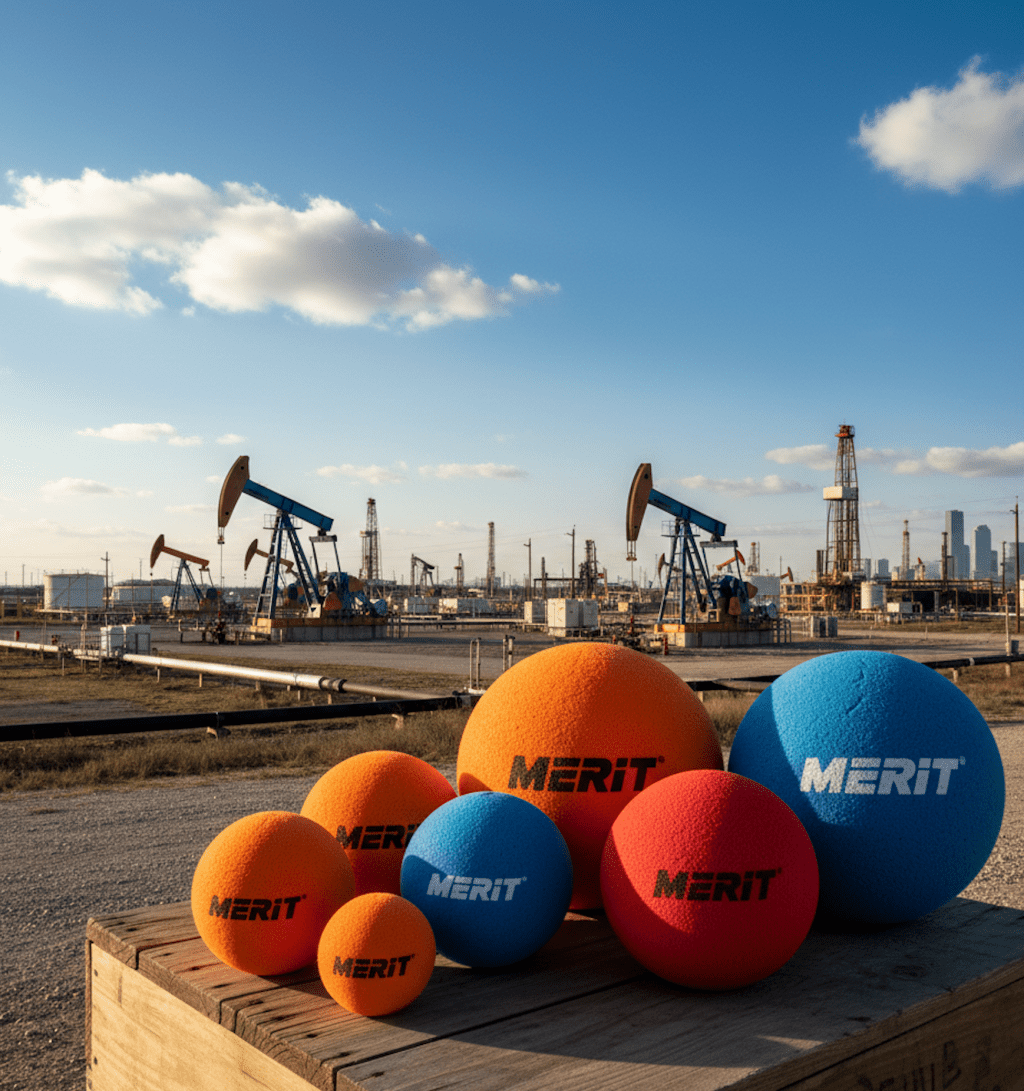

The MERIT Foam Wiper Ball is engineered to wipe drill pipes or tubing strings wipe of cement, fluids, or debris. It is also highly effective as a mechanical barrier to separate different types of fluids during displacement operations.
Key Features and Benefits
- Superior Elasticity: Manufactured from premium natural rubber with a high parting stretch of 380% to 440%. This allows the ball to pass through significant restrictions without structural damage.
- Versatile Navigation: Designed for easy passage through internal upsets and restrictions, including mechanical setting tools, running tools, and diverters.
- Thermal Resilience: Suitable for extreme environments with an operational temperature range from 40°F to 302°F (4°C to 150°C).
- Chemical Compatibility: Proven performance with all types of drilling, completion, and displacement fluids.
TECHNICAL SPECIFICATIONS
| MERIT Part Number | Actual Size (in) | Typical Wiping Range (in) | Minimum Restriction (in) |
| WP10002 | 2.36″ | 1.95″ to 0.85″ | 0.400″ |
| WP10003 | 3.14″ | 2.50″ to 1.10″ | 0.482″ |
| WP10004 | 3.94″ | 3.12″ to 1.38″ | 0.625″ |
| WP10005 | 4.72″ | 4.00″ to 1.75″ | 0.765″ |
| WP10006 | 5.92″ | 4.75″ to 2.00″ | 0.875″ |
| WP10007 | 6.89″ | 5.50″ to 2.38″ | 1.000″ |
| WP10008 | 8.66″ | 7.00″ to 3.00″ | 1.321″ |
| WP10012 | 11.81″ | 9.50″ to 4.10″ | 1.875″ |
Foam Wiper Ball
